Transfering the code to a Hormann HSE 4 BS hand transmitter
Series 3 Hand Transmitters
Please note: To transfer the code from one hand transmitter to another, the signal strength needs to be very strong. This means the units need to be very close together and have a good battery power.

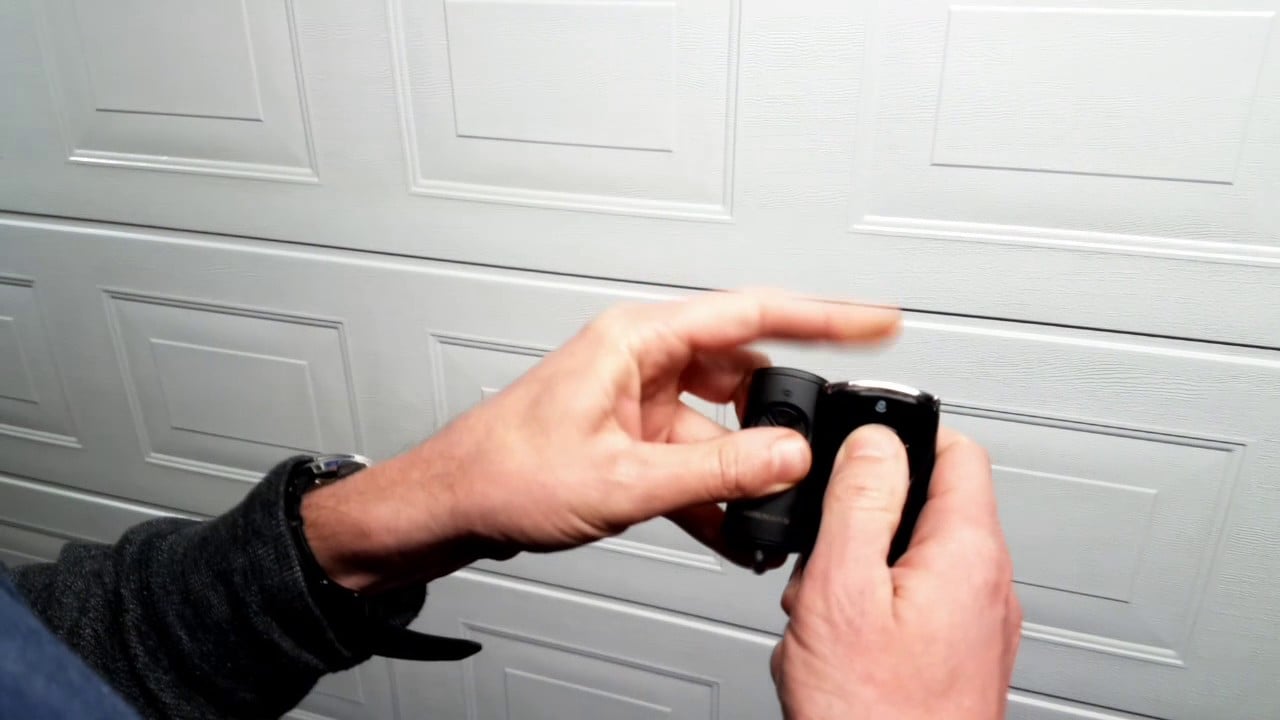

The procedure is more reliable if the receiving transmitter is on the left hand side, ideally in direct contact with the sending / existing transmitter, with their tops level (see image below).
Transferring the code from a BiSecur hand transmitter to a BiSecur hand transmitter
1. Press and hold the button on your existing hand transmitter (which has the code you want to transfer.)
The LED will illuminate constantly then start to flash red and blue, keep the button pressed down until the code has been successfully transferred.
2. Once the first hand transmitter has started to flash red and blue, press and hold the button on the hand transmitter which is to receive the code. The LED will flash blue slowly for a few seconds then flash quickly for a few seconds, and then stop with no illumination.
Please note: On later edition transmitters, when receiving a code, the LED will show solid blue for a couple of seconds before flashing blue slowly for a few seconds then flashing quickly for a few seconds, and then stopping with no illumination.
The code has now been transferred. You can continue this process to transfer the code to different buttons.
More information
Bonjour Jean, If you have a series 4 supramatic you can use the free BlueSecur app on a smartphone and have one free licence. You can buy additional licences through the app to give to other smartphone users. If you have a promatic or older operator you would need to use a separate bluetooth receiver.
https://www.ukgaragedoorspares.co.uk/Garage%20Door%20Smart%20Home%20Automation/Hormann-HETS-24-BLE-Bluetooth-Receiver
Bonsoir je n’ai que une télécommande de porte de garage HSE4-868-BS , est il possible de la programmer sur un smartphone ?
de façon que nous soyons 3 a pouvoir l’utiliser.
merci pour tous conseils ou renseignements.
Thank you very much for sharing this with us. You helped me as well. I am not sure why they didn’t wrote complete steps from the beginning to the end, probably so you have to go to official Hormnn dealer and give them 20, 30 euros.
Thanks Daniel very much!
Thanks Daniel. Can’t think why this is not mrntioned in either the instruction manual or most You tube videos.
Anyway you have solved a frustrating problem so thanks again!
you solved the same issue for me also..
Thanks 🙂
This solved it for me too. One additional point – don’t wait too long before doing the second stage of the ‘teaching in’ or you will have to start again.
I’ve tried to program a brand new HSE4-868-BS from an old one. The programming appears to work but the new remote doesn’t operate the door.
The old one still works.
Pressing the new one while inside that garage I can see the led on the door operator flash but it doesn’t move the door. I’ve tried the programming sequence several times; each time it appears to work.
Any ideas?
If it is a series 4, you need to complete an additional step after copying a code onto a new hand transmitter. Once the code is coppied accross you then need to press and hold the same button on the new hand transmitter, until it flashes red and blue. You need to do this while you are in range of the operator and you should see the display flash 11.
Yes you can add additional transmitters no problem. You can clone the code from an existing transmitter so there is no limit on how many you can use.
Hi,
We’ve just had a Hormann garage door fitted today & it came with 2 HSE4-868-BS transmitters.
We would ideally like to be able to use 3 transmitters, would it be possible to program a third one or is there a limit of transmitters that can be paired with the control unit? (We have a Promatic opener)
Sometimes the process can be a bit temperamental. If the receiving transmitter is flashing red and blue, it has not detected the transmitting code. You need to make sure the receiving transmitter is on the left-hand side as this seems to be more reliable, and the units are touching with the tops level. It can take a few attempts. It also might be worth trying a new battery in the existing transmitter.
hello,
i try to transfer the code from my hse5-868-bs to an hse2-868-bs but while my transmitter works ok (flashing red and blu) the receiver does the same thing (flashes red and blu) instead of flashing blu
Hi Bart, If the light is on solid red the hand transmitter is in series 2 mode. It is only series 3 mode that the light will be blue then flash red and blue. Is it set up to work with a series 2 operator?
Dear,
I try to transfer the code from an existing HSE4-868-BS to a new one.
when pressing and holding the button which holds the code on the existing transmitter, it stays solid red and does not start flashing red & blue.
Any idea why?
Tia,
Bart
