Manual and Automatic Operation of Hormann Operators

Info Sheet: ABi009 – Manual and Automatic Operation of Hormann Operators

To disconnect the door from the operator (operate the door manually)

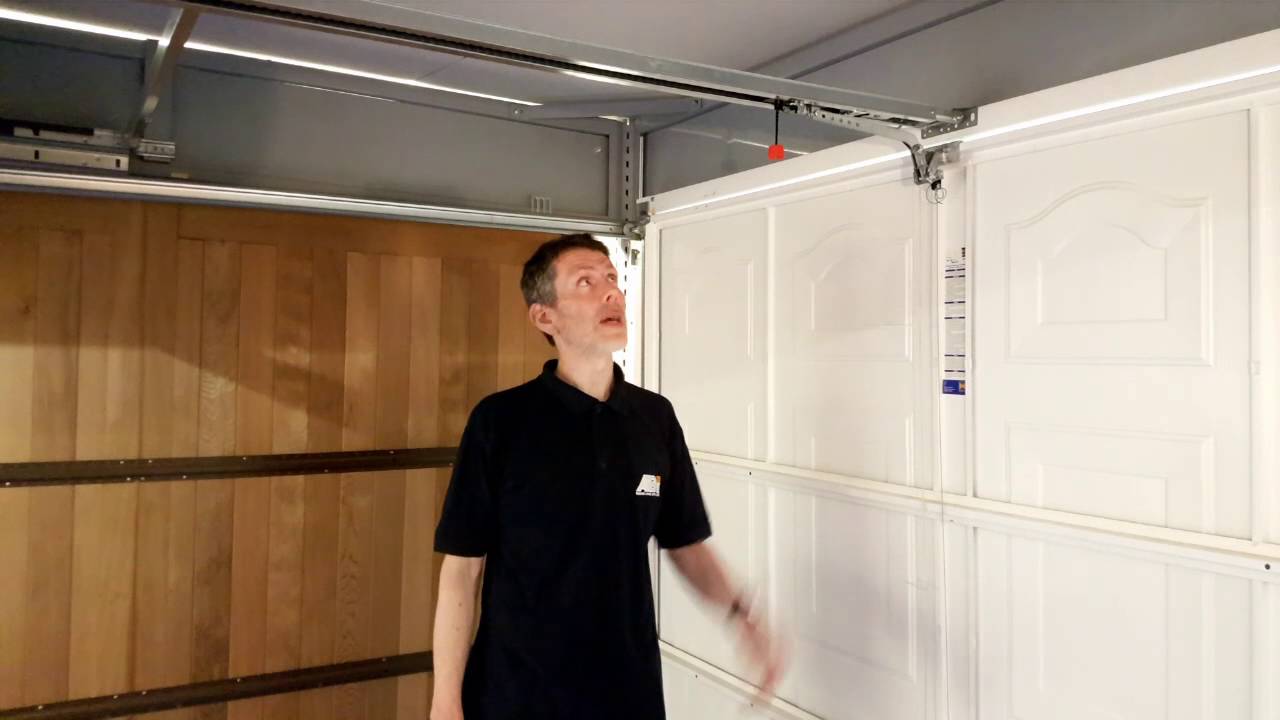

Pull on the cord attached to the cage that travels along the boom arm. It will click out of the belt and allow the door to be opened and closed manually.

abi009 Hormann Manual and Automatic Operation
To connect the door to the operator (operate the door with the automatic operator)

Press the green button on the cage that travels along the boom arm. It will click and set the cage in the automatic mode. The cage then needs to pick up the contact point on the belt.

abi009 Hormann Manual and Automatic Operation
Leave the door to rest in the half open position.

Using either the buttons on the unit itself or using a hand transmitter, activate the operator as you would to open or close the door normally.

When the contact point on the belt meets the cage it will click back in. You may have to activate the operator for a second time if the contact point on the belt travels in the wrong direction to meet the cage.

abi009 Hormann Manual and Automatic Operation
