INFO SHEET: ABi028
MOTOR TYPE: SUPRAMATIC SERIES 4
MOTOR TYPE: SUPRAMATIC SERIES 4
Deleting codes from SupraMatic series 4:

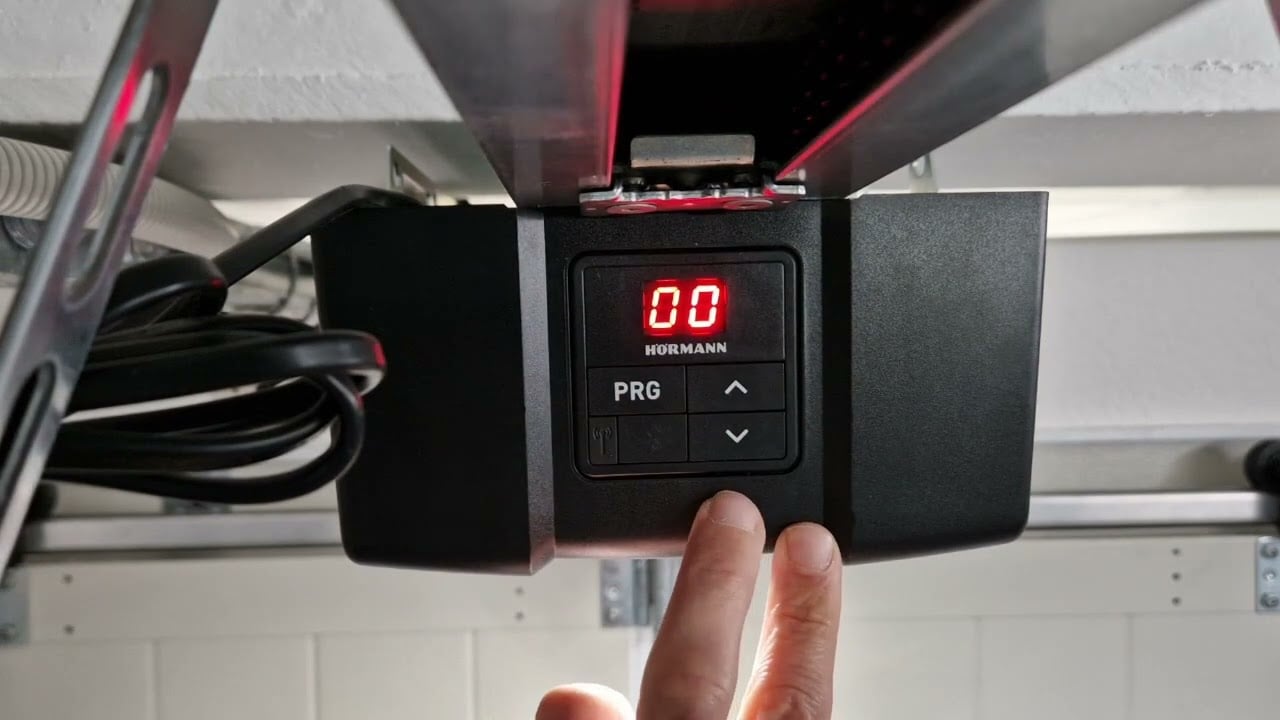

1.) Press and hold the ‘PRG’ button until ‘00’ is displayed
2.) Use the arrow buttons to navigate to menu 19 (display shows ‘19’)
3.) Press and release the ‘PRG’ button. The display should then show ‘00’
4.) Use the arrow buttons to select the desired option to delete as follows.
| 00 | Back without deleting any codes |
| 01 | Radio codes only – hand transmitters / wall buttons etc |
| 02 | Bluetooth only – smart devices using the Hörmann Bluesecur app |
| 03 | Not used |
| 04 | Delete all devices – radio and bluetooth |
5.) Once you have selected the desired option, press and hold the ‘PRG’ button for
approximately 5 seconds. The chosen option number should move to flashing rapidly
then revert back show ‘19’
approximately 5 seconds. The chosen option number should move to flashing rapidly
then revert back show ‘19’
6.) Use the arrow buttons to navigate to menu 00 (display shows ‘00’)
7.) Press ’PRG’ button to exit the menu
The display should now show a horizontal line to indicate the position of the door and the relevant
codes are permanently deleted from the unit.
